Material: stainless steel braided mesh, sintered mesh, iron woven mesh
Filter media: glass fiber filter paper, chemical fiber filter paper, wood pulp filter paper
Filtration accuracy: 1-100μm
Operating temperature: -30℃~+100℃
Filter element material: stainless steel
Flange sealing surface: FF, RF, MFM, RJ, TG
Working medium: general hydraulic oil, lubricating oil, phosphate ester hydraulic oil, emulsion, water - glycol
Gasket/seal ring: silicone rubber, ethylene propylene rubber, butadiene rubber, fluorine rubber
Ask For Quote
Replace the HYDAC filter element
The replacement HYDAC filter element is an indispensable part of the pipeline series of the conveying medium. The filter element is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminated impurities in the fluid medium, which can protect the normal operation of the equipment. When the fluid enters the filter, the impurities are blocked, and the clean filtrate is discharged from the outlet of the filter. As long as the filter element is removed from the filter and processed with industrial liquid, it can be loaded into the filter element. The performance parameters of HYDAC replacement filter element can reach the level of similar foreign filter elements, and it can be completely used as a substitute for HYDAC filter element.
application
application: thermal power and muclear power,electronics industry,petrochemical industry and railway internal combustion engine filtration,etc
model example | |||||
---|---|---|---|---|---|
1 | 0060R*BN/HC | 2 | 0165R*BN/HC | 3 | 0080MA*BN3HC |
4 | 0180MA*BN3HC | 5 | 0080MG*BN4HC | 6 | 0240R*BN/HC |
7 | 0085MA*BN/HC | 8 | 0330R*BN4HC | 9 | 0090MA*BN3HC |
10 | 0480R*BN/HC | 11 | 0095DMA*BN4HC | 12 | 0500R*BN3HC |
13 | 0100S*BN/HC | 14 | 0660R*BN4HC | 15 | 0110R*W/HC |
16 | 0850R*BN/HC | 17 | 0160MA*BN/HC | 18 | 0950R*BN3HC |
19 | 0160MG*BN/HC | 20 | 1300R*BN4HC | 21 | 0160R*V/HC |
22 | 2600R*BN4HC | 23 | 0030D*BN/HC | 24 | 0160D*BN3HC |
25 | 0035D*BN3HC | 26 | 0160DN*BN3HC | 27 | 0040D*BN3HC |
28 | 0240D*W/HC | 29 | 0055D*BN3HC | 30 | 0250DN*BN3HC |
31 | 0060D*BN3HC | 32 | 0280D*BN/HC | 33 | 0060D*BN3HC |
34 | HC9604*8H | 35 | HC8300*16Z | 36 | HC8300*16Z |
37 | 0330D*BH4HC | 38 | 0063DN*BN3HC | 39 | 0400DN*BN3HC |
40 | 0075D*BN3HC | 41 | 0500D*V3HC | 42 | 0095D*BN3HC |
43 | 0630DN*BN3HC | 44 | 0100DN*BN3HC | 45. | 0660D*BN4HC |
46 | 0140D*BN3HC | 47 | 0990D*BN3HC | / | |

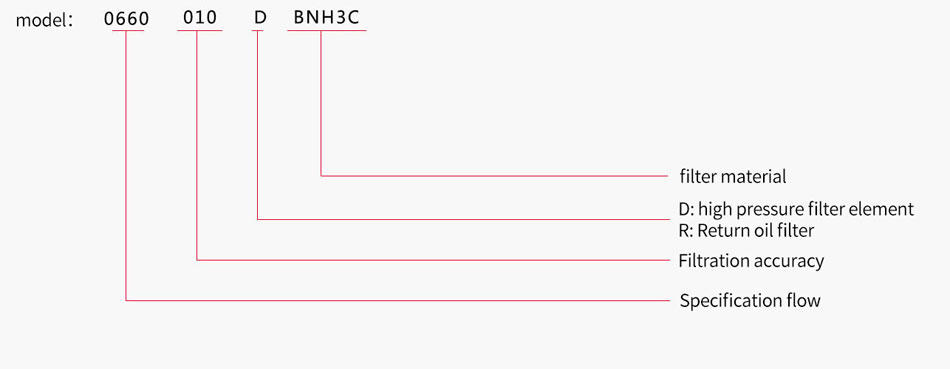

Notes:* means filter accuracy 001、003、006、012、025μm,etc |
