Cartridge Filter Housings

Cartridge Filter Housings (precision filter), whose housing is made of high quality 304 or 316 stainless steel, can install different types of filter element, such as: PP filter, line winding filter, activated carbon filter, etc., due to its large filtering area, speed, no congestion, easy to use, as a result, the terminal filtration of the pretreatment of the widely used in various industries and. Security filter has quick open, flange, embrace hoop type.

application

Pretreatment and filtering is widely used in various fields, and can effectively remove impurities in water, sediment and suspended solids, bacteria, thereby achieve filtering.

Filter medium

The impurities, sediment and suspended matter, bacteria in the water

Automatic welding

Pall High Flow Filters

Low noise, dustproof and waterproof

Standard specifications

Portable and practical

Widened and thickened rim of lid;

Increase the contact area between the cover and the clamp.

Automatic welding quality is stable;

The weld seams are uniform and beautiful;

The thread is smooth.

Its beautiful appearance, simple and reasonable structure, the inside and outside polishing, has low cost, small volume, big filter area, filtering speed, plugging rate is low, naisuanjian corrosion, long service life, etc. Within the tank replacement of different types and precision of the filter (such as PP filters, wire wound core, folded filter, metal sintering filter, titanium rod filter filter) and so on the many kinds of different specifications can remove all kinds of small particles in the filtrate, colloid, metal, impurities such as bacteria, residual atmosphere.

1.can bear high pressure, can effectively remove suspended solids in liquid, rust, etc.;

2.the filter can be used a variety of materials, so as to adapt to the needs of the various fluid filtration;

3.small volume, shape filter has big filter area, small resistance, long service life.

4. acid, chemical solvents such as reduced;

5. high filtration precision, filter aperture uniform, strength, high temperature resistant, filter out of shape not easily;

6. filter resistance, large flux, sewage capability is strong, long service life;

7. spotlessness, filter material, the filter medium pollution;

8. price is low, low operating cost, easy cleaning, filter can be replaced.

9. shell generally adopt stainless steel material manufacturing, material of tank can be divided into the glass fiber reinforced plastic cans, carbon steel, stainless steel pot, also can be produced according to user requirements. Internal use PP melt-blown, burn, folding line, titanium filter, activated carbon filter, such as tubular filter as the filter element, depending on the filter medium and choose different filter elements, design process to meet the requirements of the quality of the output water.

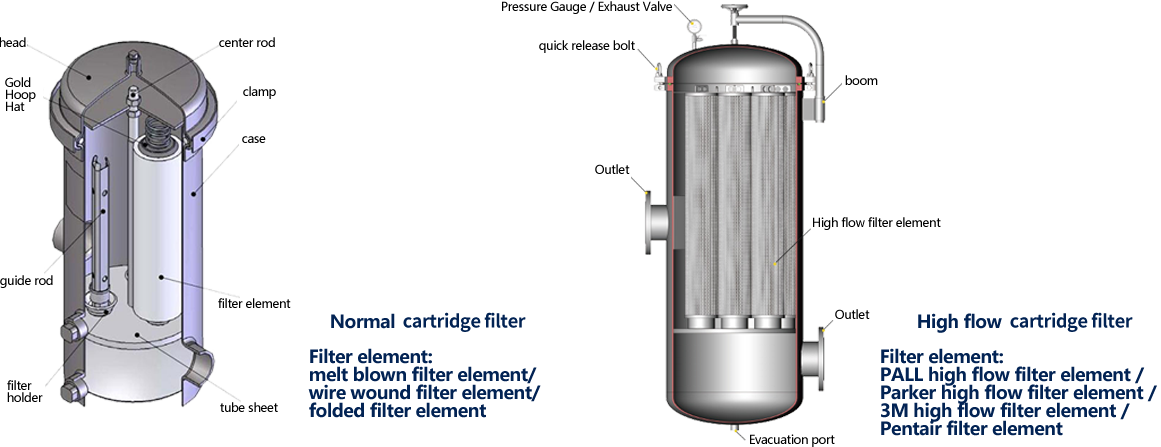

Working principle

The cartridge filter is equipped with filter element made of shaped filtration material. Under the action of pressure, the raw liquid passes through the filter element, the filter residue remains on the wall of the filter element, and the filtered liquid flows out through the filter element, which can effectively remove the impurities, sediment, suspended matter and bacteria in the water, so as to achieve the purpose of filtering. The shaped filtration material includes: filter cloth, filter screen, filter disc, sintered filter tube, wound filter element, melt blown filter element, microporous filter element and multi-function filter element. Because the material is different, the filter accuracy is not same. Precision filtration is a kind of filtration between sand filtration (coarse filtration) and ultrafiltration. The filtration accuracy is generally in the range of 0.1-120μm.
