Basket filter

The basket filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of the device. When the fluid enters the filter cartridge with a certain size filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it needs to be cleaned, just take out the detachable filter cartridge and reload it after processing.

Application

power, reverse osmosis pre-stage, petrochemical, fine chemical, food and beverage, automobile, industry, metallurgy, papermaking, medical Medicine, microelectronics, environmental protection water treatment and other industries.

Filter media

water suspended solids, particulate matter, water fouling, bacteria and algae, rust, etc.

Easy to use:

The filter element/filter bag is supported by a metal mesh basket inside the filter. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter element.

Use of high-quality materials:

For different service conditions, you can choose cast iron, carbon steel, low-alloy steel or stainless steel filters.

The equipment is easy to use:

when the filter works for a period of time, certain impurities are precipitated in the filter core. At this time, the pressure drop increases and the flow rate decreases. It is necessary to remove the impurities in the filter core in time.

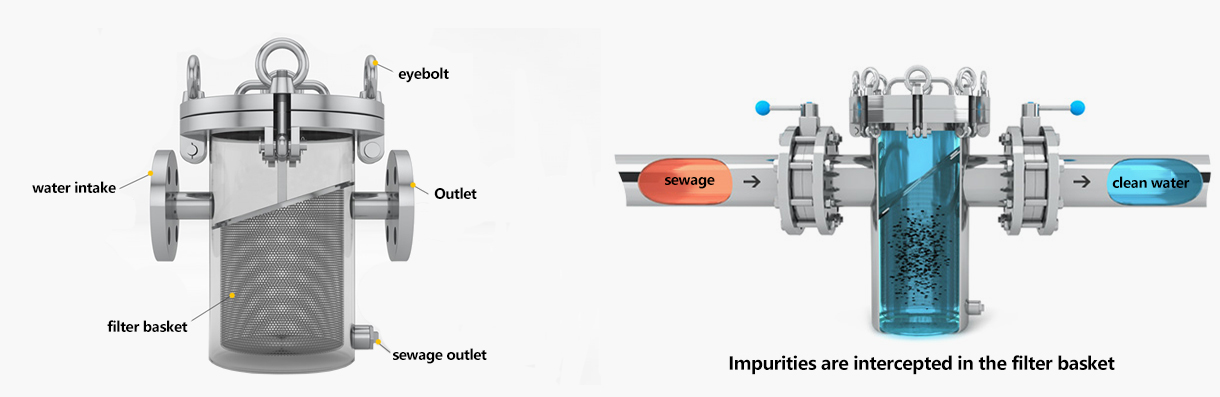

Working principle

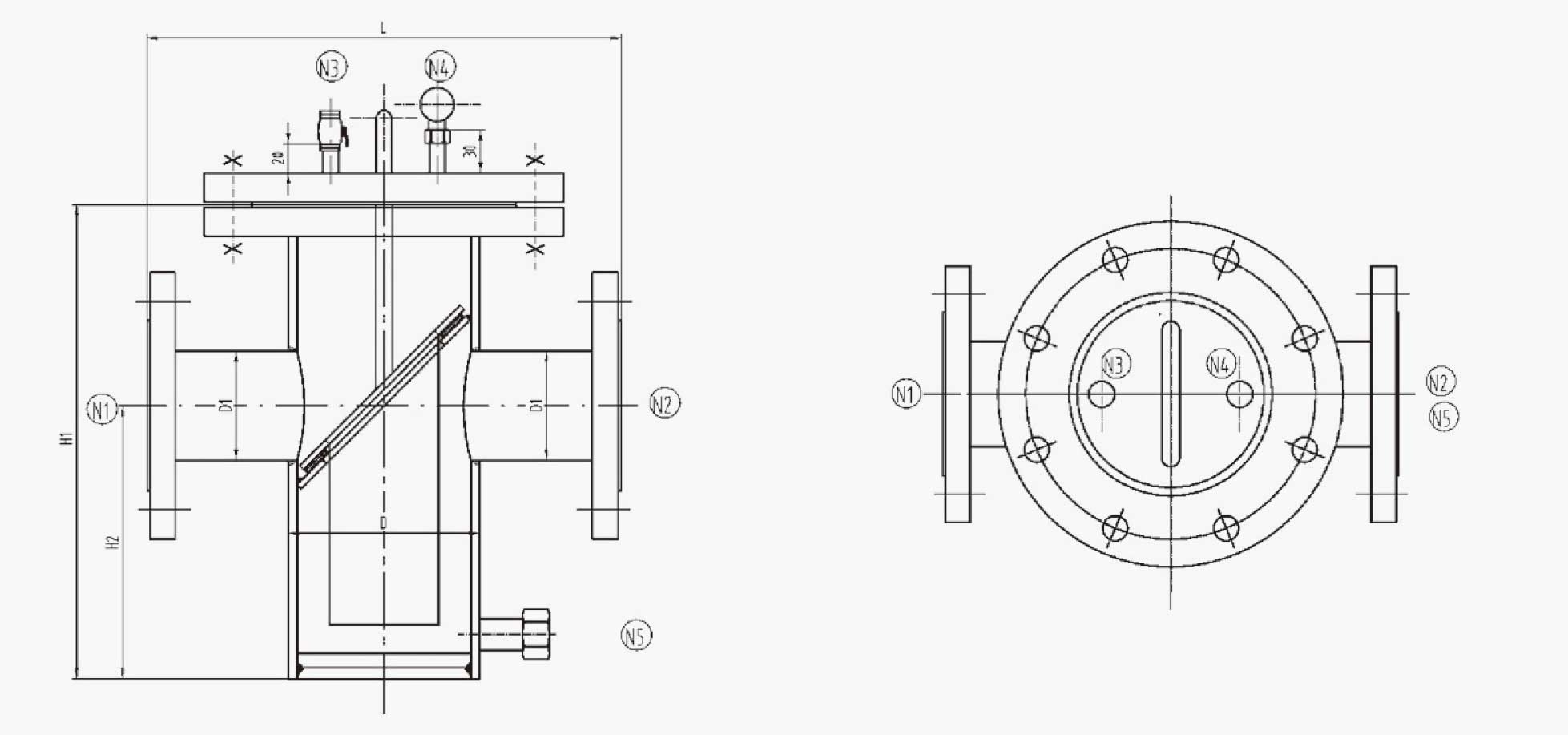

The basket filter is mainly composed of a nozzle, a main pipe, a filter blue, a flange, a flange cover and a fastener. In the sewage treatment equipment, after the liquid enters the filter blue through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is required, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and re-install it after cleaning. Therefore, it is extremely convenient to use and maintain.
