Cartridge dust collector
Cartridge Dust Collector
The filter cartridge dust collector is composed of a filter element as a filter element or a dust collector with pulse injection. Cartridge dust collectors can be divided into oblique insertion type, side-mounted type, hoisting type, and top-mounted type according to the installation method. Cartridge dust collectors can be divided into long fiber polyester filter cartridge dust collectors, composite fiber filter cartridge dust collectors, anti-static filter cartridge dust collectors, flame retardant filter cartridge dust collectors, and film-coated filter cartridge dust collectors according to the material of the filter cartridges, nano filter cartridge dust collector, etc.
application：mechanical processing, chemical production, powder recycling, construction manufacturing, pharmaceutical production, food processing and other industries
Filter media：air particles, impurities, etc.
| Model Number | Filter Cartridge Qty.(pcs) | Filtration Area(㎡) | Recommended air volume (m³/h) | Filter cartridge Part number(mm) | Dimensions(L×W×H) (mm) |
|---|---|---|---|---|---|
| LF-XLC 6-1 | 12 | 120 | 7200 | LFKL-3266 | 1010*2300*3600 |
| LF-XLC 6-2 | 24 | 240 | 14400 | 2020*2300*3600 | |
| LF-XLC 6-3 | 36 | 360 | 21600 | 3030*2300*3600 | |
| LF-XLC 6-4 | 48 | 480 | 28800 | 4040*2300*3600 | |
| LF-XLC 6-5 | 60 | 600 | 36000 | 5050*2300*3600 | |
| LF-XLC 6-6 | 72 | 720 | 43200 | 6060*2300*3600 | |
| LF-XLC 8-1 | 16 | 160 | 9600 | 1010*2300*4080 | |
| LF-XLC 8-2 | 32 | 320 | 19200 | 2020*2300*4080 | |
| LF-XLC 8-3 | 48 | 480 | 28800 | 3030*2300*4080 | |
| LF-XLC 8-4 | 64 | 640 | 38400 | 4040*2300*4080 | |
| LF-XLC 8-5 | 80 | 800 | 48000 | 5050*2300*4080 | |
| LF-XLC 8-6 | 96 | 960 | 57600 | 6060*2300*4080 | |
| LF-XLC 8-7 | 112 | 1120 | 67200 | 7070*2300*4080 | |
| LF-XLC 8-8 | 128 | 1280 | 76800 | 8080*2300*4080 | |
| LF-HLC 8-1 | 8 | 120 | 7200 | LFKL-3210 | 1050*1800*4150 |
| LF-HLC 8-2 | 16 | 240 | 14400 | 2100*1800*4150 | |
| LF-HLC 8-3 | 24 | 360 | 21600 | 3150*1800*4150 | |
| LF-HLC 8-4 | 32 | 480 | 28800 | 4200*1800*4150 | |
| LF-HLC 8-5 | 40 | 600 | 36000 | 5250*1800*4150 | |
| LF-HLC 8-6 | 48 | 720 | 43200 | 6300*1800*4150 | |
| LF-HLC 8-7 | 56 | 840 | 50400 | 7350*1800*4150 | |
| LF-HLC 8-8 | 64 | 960 | 57600 | 8400*1800*4150 |
Cartridge dust collector;
Start the blowing device to clean the dust and other filter cartridges work normally, which not only achieves the dust removal effect but does not affect the operation of the equipment, so that the dust collector can run continuously
Performance
Small pores:
Has good filtration performance
Strong pressure resistance
High filtering precis
The dust removal efficiency can be as high as 99.9%:
the filter area of the dust collector with the same volume is relatively large, the filtering wind speed is small, and the resistance is not large.
Easy to replace:
The filter cartridge has no moving parts on its body, which avoids the trouble of constantly changing materials in the old dust collector, saving money, time and effort.
small volume:
The height of the filter cartridge is small, and the installation and maintenance workload is small;

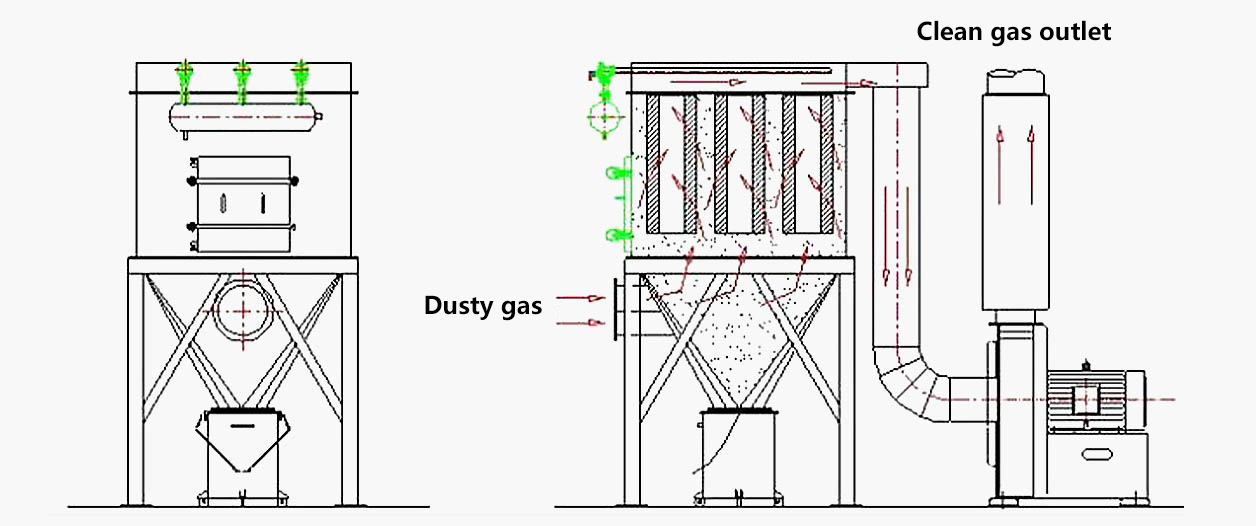

Working principle
After the dust-laden gas enters the ash hopper of the dust collector, due to the sudden expansion of the airflow section and the action of the airflow distribution plate, a part of the coarse particles in the airflow settle in the ash hopper under the action of dynamic and inertial forces: the fine-grained and low-density dust particles enter the dust filter chamber. , Through the group effect such as Brown diffusion and sieving, the dust is deposited on the surface of the filter material, and the purified gas enters the clean air chamber and is discharged by the exhaust pipe through the fan.
