High temperature metal membrane filter cartridge dust collector

In recent years, with the continuous development of new technologies and new materials, the structure and filter material of the dust collector have been improved, so that the filter cartridge dust collector is widely used in cement, steel, electric power, food, metallurgy, chemical industry and other industrial fields. The overall capacity has increased several times, and it has become a large-scale dust collector with a filter area of > 2000m2 (GB6719-86 category). Compared with the existing bag-type and electrostatic precipitators on the market, the solution has the characteristics of large effective filtration area, low pressure difference, low emission, small size and long service life, and has become a new direction for the development of industrial dust collectors.

Application：Cement, steel, electric power, food, metallurgy, chemical industry and other industrial fields

Filter media：air particles, floating dust, impurities, etc

Cartridge dust collector;

Start the blowing device for cleaning, and other filter cartridges work normally, which not only achieves the cleaning effect but does not affect the operation of the equipment.

Dust removal efficiency can be as high as 99.9%:

The filter area of the dust collector with the same volume is relatively large, the filtering wind speed is small, and the resistance is not large

High temperature resistance:

The dust filter cartridge adopts high temperature resistant metal film and the shell form of the high temperature filter cartridge dust collector itself, which is heat preservation, explosion-proof, ash unloading, ash transport, and realizes the high temperature dust removal function of the whole

Small volume:

The height of the filter cartridge is small, and the installation and maintenance workload is small;

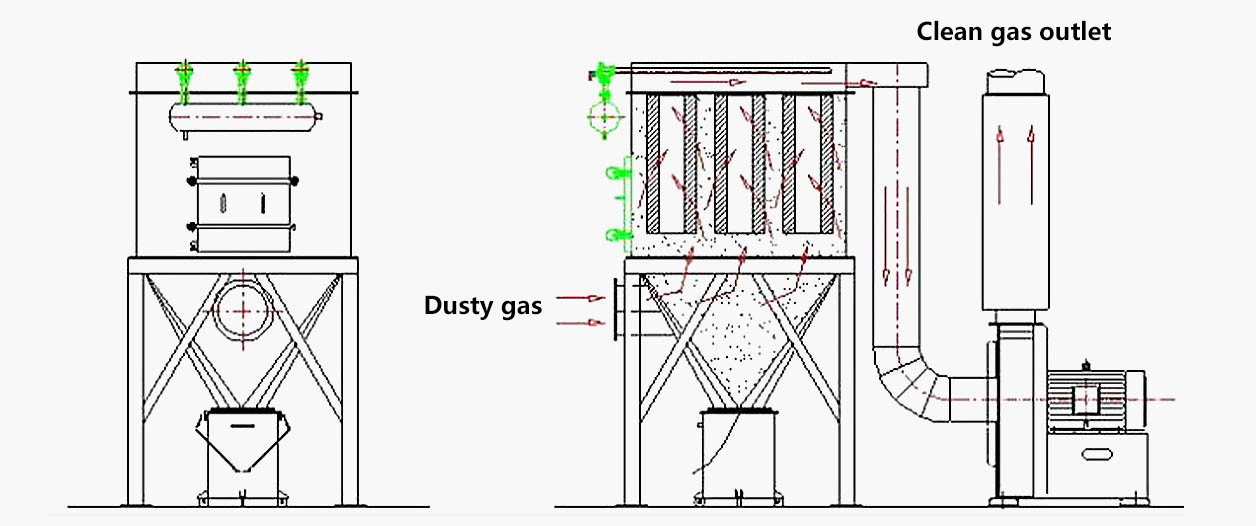

After the dust-laden gas enters the ash hopper of the dust collector, due to the sudden expansion of the airflow section and the action of the airflow distribution plate, part of the coarse particles in the airflow settle in the ash hopper under the action of dynamic and inertial forces; , Through the combined effects of Brown diffusion and sieving, the dust is deposited on the surface of the filter material, and the purified gas enters the clean air chamber and is discharged by the exhaust pipe through the fan.
