Demineralized water equipment

Water softening equipment, that is, equipment that reduces water hardness, mainly removes calcium and magnesium ions in water. When the incoming water is deep well water or the hardness of the water source is very high, the function of using softening water equipment is to remove the calcium and magnesium ions in the water. , reducing calcium and magnesium ions in water. In the process of softening water, softening water equipment cannot reduce the total salt content in water. It is widely used in hot water boiler systems, heat exchange systems, industrial cooling systems, central air conditioning systems and other water equipment systems.

Application：Industrial boilers,central air conditioners,heat exchangers,printing and dyeing and other industries.

Filter media：Calcium and magnesium ions in water

Inlet water pressure：0.18-0.6Mpa　

Operation mode: automatic,manual

Control method: time,flow rate

Working power:220V/50Hz

Tank material: stainless steel, glass fiber reinforced plastic, steel lined plastic

Power and water saving:the water production rate >98%.

Regeneration method: co-current,counter-current

Equipment type:purification and softening equipment,single-tank with single-valve,double-tank with double-valve.

Can be customized according to different working conditions

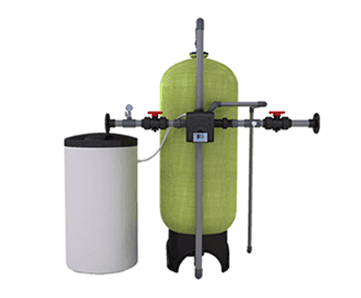

Single-tank with single-valve

The single-tank with single-valve softening system refers to a resin tank,a multi-way valve,and a salt tank,and the water is stopped when the system is regenerated.

Configuration structure: FRP tank + water distributor + automatic control valve + resin + salt tank + salt valve + salt suction pipeline + pipeline + pressure gauge,five processes of water production, backwashing,salt absorption,water injection,and positive washing.

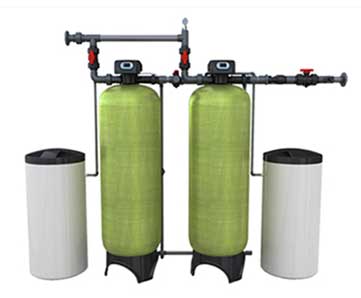

double-tank with double-valve

The double-tank with double-valve system is composed of two resin tanks (main tank and auxiliary tank) hydraulic control valve and salt tank.

The control valve controls the water circuit to switch between the main tank and the auxiliary tank to ensure that there is always one tank in working state,which can supply water at the same time,alternately regenerate,or alternately supply one for backup and one for use.

Purification and softening equipment

The unavoidable problem of pre-purification of softened water in general well water is that it will contain a certain amount of sediment and other visible impurities (deep well water is relatively better).The softening tank enters a certain amount of sediment,and the resin is surrounded by sediment,then it will lead to insufficient contact between resin and raw water,which will affect the softening effect.If the backwash process cannot be completely flushed out of the tank,there is a possibility of forming lumps.Therefore,if the raw water is well water,it is recommended to install a quartz sand filter before the softening filter to improve the influent and effluent quality of the softening filter.

Demineralized water equipment

Let the raw water pass through the anion and cation converter to remove calcium, magnesium.

Easy operation:

With fully intelligent settings,unmanned operation can be realized,and the working status can be directly observed on the control panel,without professional guidance.

PE material salt box:

Made of high-quality polypropylene material,the product is resistant to acid and alkali,not easy to age,and has a long service life,ensuring that the water quality test meets the national drinking water standard.

Intelligent control:

The demineralized water equipment realizes the automation of the ion exchange and resin regeneration process through the program control device,which does not require special personnel to operate and is easy to be installed.

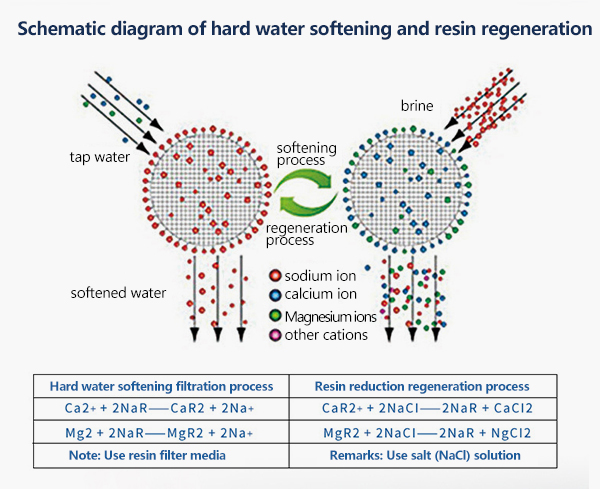

Working principle

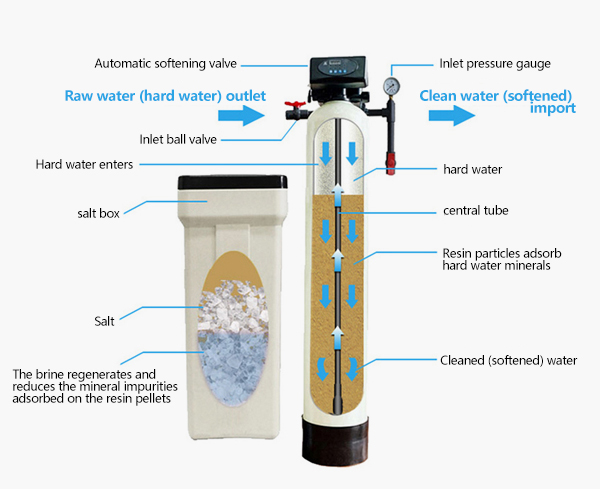

The softening water equipment is composed of automatic softening water controller,salt box, strong acid sodium ion cation resin,resin tank (usually it’s stainless steel resin tank and glass fiber reinforced plastic resin tank),and water softener accessories.With the control of water flow and time,commands are sent to solenoid valves or multi-channel servo valves to complete the water supply and regeneration of softened water equipment.It’s the most widely used for hard water softening treatment equipment in industrial boilers,cooling circulating water,steelmaking,steel rolling,large transformers,civil hot water boilers, etc.
