summary

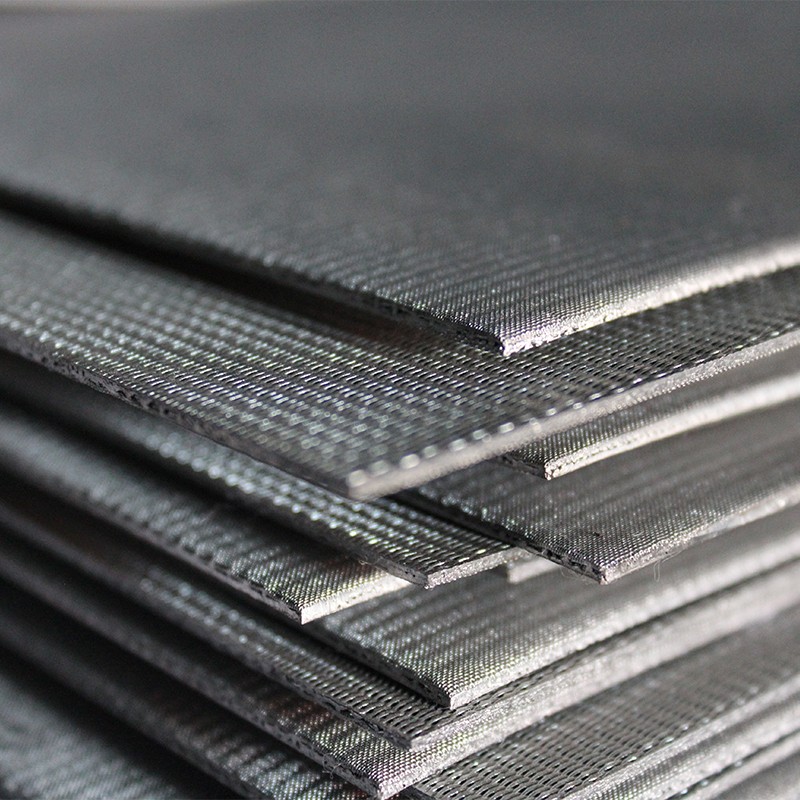

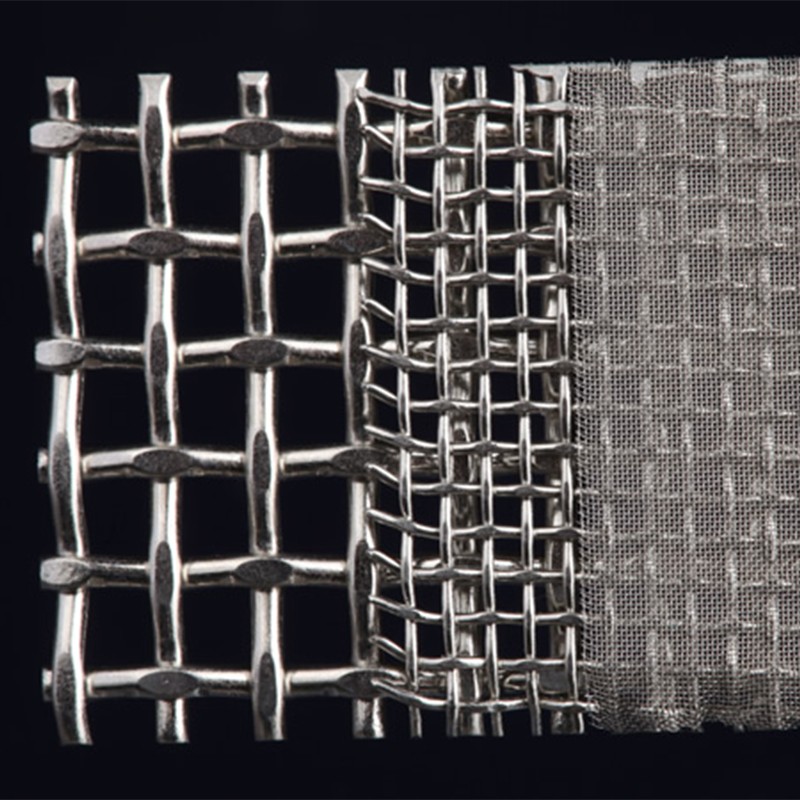

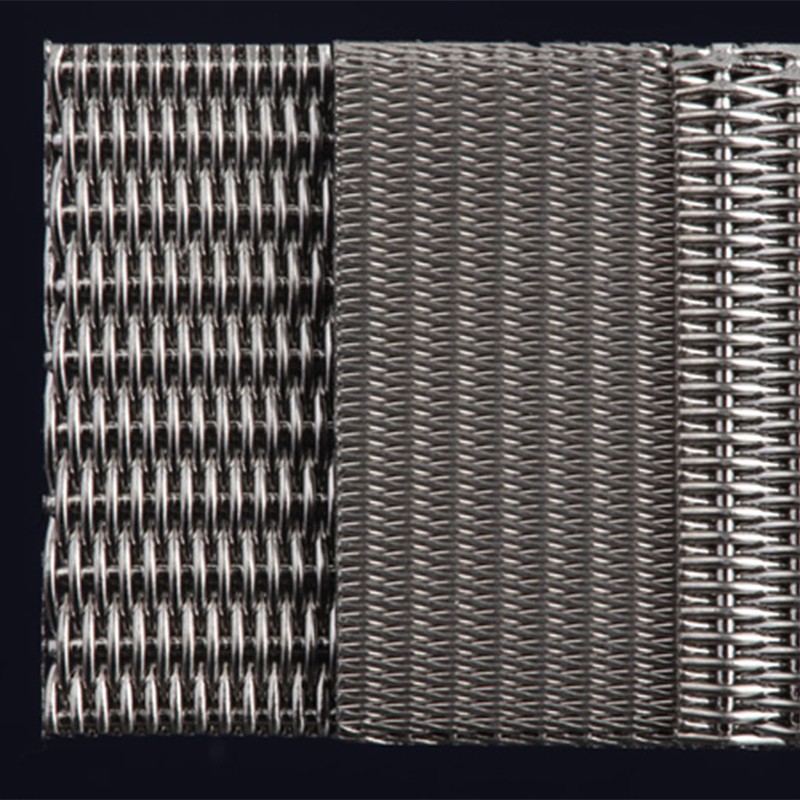

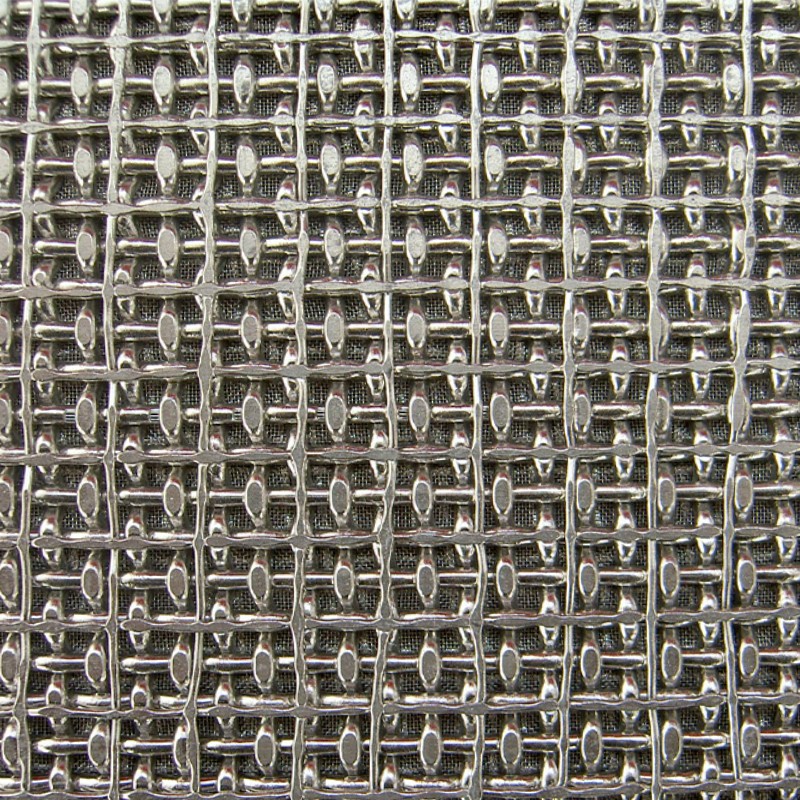

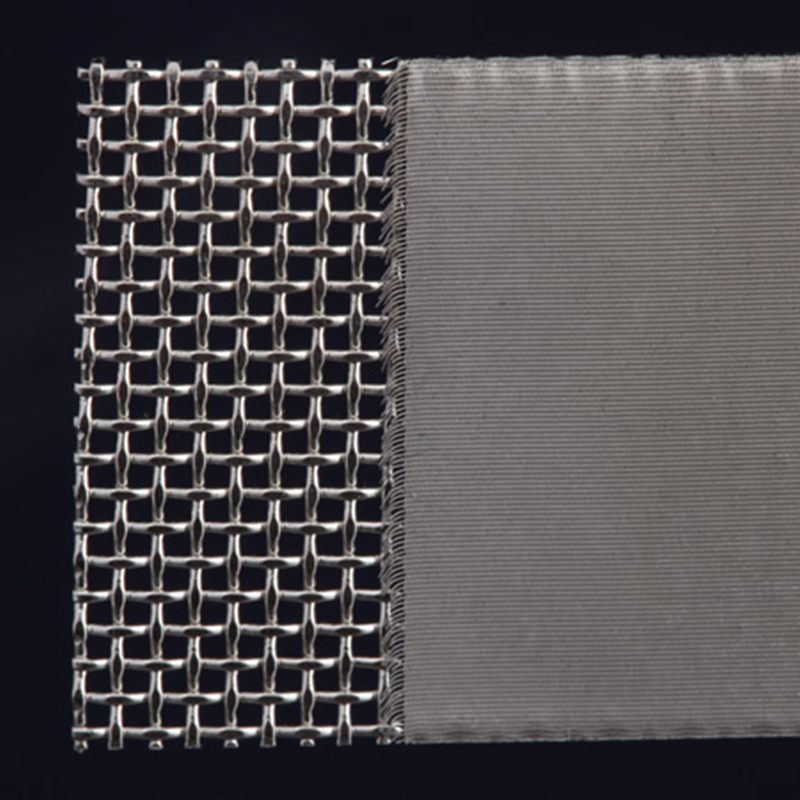

This is one of the most widely used standard structure sintering nets. It is a porous sintered material made by stacking five layers of stainless steel wire mesh according to different structures, and then sintering, pressing, rolling and other processes.

characteristic

● Wide range of filtering accuracy. From 1 μ－ one hundred μ， All have reliable filtration performance;

● The filtering accuracy is stable. The filter layer mesh is not easy to deform due to the protection of upper and lower layers of wire mesh;

● Good strength. With the fourth and fifth layers as the support, it has high pressure resistance and mechanical strength;

● Easy to clean. As the surface filter material is used, it is easy to clean, especially suitable for backwashing;

● High temperature resistance. Can withstand high temperature of 480 ℃;

● Corrosion resistance. Because SUS316L material is used, it has high corrosion resistance;

● Easy to process. Suitable for cutting, bending, stamping, stretching, welding and other processing conditions.

texture of material

In addition to the standard materials of SUS304 (AISI304), SUS316 (AISI316) and SUS316L (AISI316L), we can also customize Hastelloy, Monel, Inconel and other special alloys for customers.

size

Standard size is 500 × 1000㎜、600 × 1200㎜、1000 × 1000mm、1200 × 1200mm。 The sizes within the above range can be customized according to user requirements.
