Shell: Q235, 304 stainless steel
Filter screen: 304 stainless steel, 316L stainless steel
Minimum backwashing water pressure: 0.2 MPa
Blowdown valve: cast iron, stainless steel
Purpose: removing impurities in water
Sealing ring: EPDM rubber
System backwashing interval: 0-10h (adjustable according to water quality)
System backwashing sequence: backwashing unit by unit
Ask For Quote
Introduction
Multi cartridges self-cleaning filter lefilter
Multi cartridges self-cleaning filter
Multi cartridges self-cleaning filter is a kind of industrial automatic filter that can provide a variety of comprehensive uses to ensure the purity and reliability of the filtered liquid. It is a standard water filter for most water filtration applications, in terms of processing capacity, accuracy and reliability. It can continue to maintain good operating posture even under harsh operating conditions.
Application
Power industry, reverse osmosis pre-stage, petrochemical, chemical, food and beverage, automotive, industrial, metallurgy, papermaking, pharmaceutical, microelectronics, environmental protection water treatment and other industries.
Filter medium
Suspended solids, particulate matter, water quality dirt, bacteria and algae, corrosion, etc
| Model | Tank specification | Inlet & outlet specification | Maximum flow t/h | Pressure bar | Material | Accuracy class | Motor power/reducer model |
|---|---|---|---|---|---|---|---|
| LFS-300-150 | Φ325*2200 | DN150 | 200 | 10 | Q235 / 304 stainless steel | ≥50μm | 0.37kw/RV040 |
| LFS-400-200 | Φ426*2300 | DN200 | 300 | 10 | ≥100μm | ||
| LFS-480-250 | Φ480*2350 | DN250 | 450 | 10 | ≥100μm | ||
| LFS-600-300 | Φ600*2500 | DN300 | 700 | 10 | ≥200μm | 0.75kw/RV075 | |
| LFZ-700-350 | Φ700*2600 | DN350 | 900 | 10 | ≥300μm | ||
| LFZ-800-350 | Φ800*2600 | DN400 | 1200 | 10 | ≥300μm | ||
| LFZ-900-400 | Φ900*2800 | DN450 | 1500 | 10 | ≥500μm | ||
| LFZ-1000-450 | Φ1000*3000 | DN500 | 2000 | 10 | ≥1000μm | 1.5kw/RV090 | |
| LFZ-1100-600 | Φ1100*3200 | DN600 | 2500 | 10 | ≥1000μm | ||
| LFZ-1200-700 | Φ1200*3500 | DN700 | 3500 | 10 | ≥1500μm |
Automatic control system:
intelligent control system is sensitive, accurate, simple and easy to operate.
High performance precision filter element:
V-shaped slit precision filter element: V-shaped opening has good backwashing effect and is not easy to jam impurities.
Advantages of overall structure:
the overall equipment structure has no consumables, less vulnerable parts and low operation cost

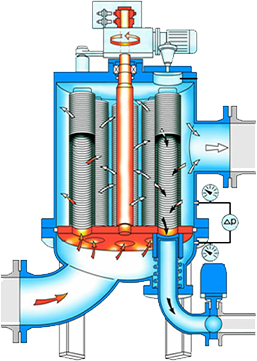

First of all, the water passes through the coarse filter at the inlet to remove the larger impurities, and then passes through the fine filter to remove the smaller impurities. In the filtration process, the fine filter gradually accumulates dirt and impurities, forming a impurity layer which is piled up in the inner side of the fine filter screen, then a differential pressure is formed on the inside and outside sides of the fine screen.
When the pressure difference of the filter reaches the preset value, the automatic self-cleaning process will begin, the water supply is not cut off during this self-cleaning process; the sewage discharge valve is opened, the water pressure in the cleaning chamber and the sewage suction pipe greatly decreases, and there will be a pressure difference between the filter element and the sewage suction pipe, the suction pipe and the cleaning chamber will produce a suction process through the suction nozzle, forming a sewage suction process. At the same time, the electric motor drives the suction pipe along the axial spiral movement. The combination of axial movement and rotary movement of the suction pipe will completely clean the inner surface of the filter screen. The whole process takes only a few seconds. The drain valve closes at the end of cleaning. The filter begins to prepare for the next flush cycle.
