Low Pressure Jet Pulse Bag Filter
The dust collector is mainly composed of brackets, ash hoppers, filter chambers, clean air chambers, filter bags, injection devices and controllers. The dust collector is a combination type, consisting of 1, 2, 3, and 4 unit specifications. Each unit has 24 rows. Each row has 12 filter bags. Each unit has 336 filter bags with a filter area of 800㎡. The filter bag has a length of 6 meters and a diameter of 130mm. The filter bag is made of polyester needle-punched felt.
application：metallurgy, foundry, mining, chemical industry, cement building materials and other industrial sectors
Filter media：air particles, smoke pollution, ultra-fine dust air, etc.
| Model Number | FLZ-800 | FLZ-1600 | FLZ-2400 | FLZ-3200 | FLZ-4800 | |
|---|---|---|---|---|---|---|
| Number of units (units) | 1 | 2 | 3 | 4 | 6 | |
| Filter bag (Pcs) | 336 | 672 | 1008 | 1344 | 2016 | |
| Filter bag specification (mm) | Φ130×6000 | |||||
| Filter Bag Material | Polyester Needle Punched Felt | |||||
| Filtration area (㎡) | 800 | 1600 | 2400 | 3200 | 4800 | |
| Filter wind speed (m/min) | 1.0 | |||||
| Air volume (m³/h) | 48000 | 96000 | 144000 | 192000 | 240000 | |
| Equipment resistance (Pa) | 800-1500 | |||||
| Inlet concentration (g/m³) | 30-100 | |||||
| Dust removal efficiency | >99.5 | |||||
| Air leakage rate | ＜3% | |||||
| Pulse valve | size | 3"Submerged | ||||
| Qty. | 24 | 48 | 72 | 96 | 144 | |
| Blowing time (s) | 0.08 | |||||
| Blowing pressure (MPa) | 0.20-0.25 | |||||
| Air consumption m³/time | 0.2-0.25 | |||||
| Blowing interval (s) | 5-20 | |||||
| Spiral motor power (KW) | 2.2 | 3.5 | 4.0 | 5.5 | 7.5 | |
| Equipment weight (tons) | 21 | 36 | 52 | 78 | 118 | |
Clean the ash thoroughly;
The online long-bag low-pressure pulse cleaning technology is adopted, which has the advantages of thorough cleaning and low air consumption.
Small size:
The differential pressure display function is complete, the adjustment is convenient, and the air consumption is saved.
Good sealing performance:
compact structure, light weight and small floor space
Easy disassembly and assembly:
good tightness, easy disassembly and assembly, the bag cage is supported on the flower board, and no pressing device is required

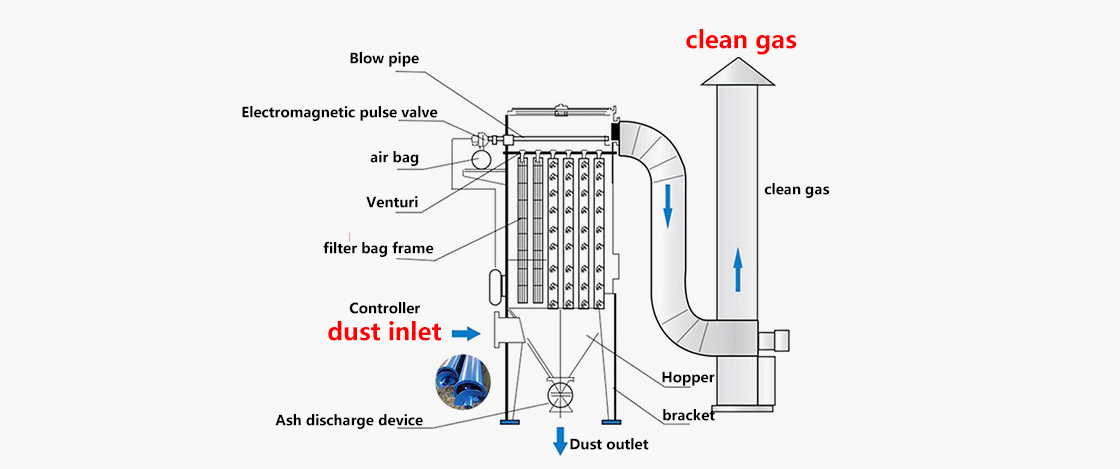

Working principle
After the dust-laden gas enters the dust collector, the air flow is evenly dispersed and guided into the filter chamber by the deflector, and then flows down along the filter bag and passes through the filter bag uniformly. In this way, there is a downward airflow at the lower part of the filter bag, which is consistent with the direction of dust falling during spraying, which is conducive to the settlement of dust and improves the cleaning effect.
When the resistance of the dust collector increases, the pulse interval of the injection system is shortened at a certain interval, that is, fast injection. When the resistance is small, the interval of pulse injection is lengthened, that is, slow injection. This control method minimizes the number of injections, which reduces power consumption. Extend the service life of filter bags, diaphragms and solenoid valves, improve the reliability of dust collector operation, and balance the resistance, air volume and compressed air consumption of the dust collector. The maintenance and management of the dust collector is convenient. There is a cover plate on the top of the clean air chamber of the dust collector, which is specially used for the maintenance and replacement of the filter bag.
