Wire wound filter element

The wire wound filter element is a kind of deep filter element, which is used for the filtration of low viscosity and low impurity quality. It is made of textile fiber thread (polypropylene thread, degreased cotton thread, etc.) which is precisely wound on the porous skeleton (polypropylene or stainless steel) according to the specific process. It has a honeycomb structure with sparse outside and dense inside, and can effectively remove the suspended solids, particles, rust and other impurities in the fluid. It has very excellent filtration characteristics.

Application

pharmaceutical industry, food industry, electronic industry, petroleum and chemical industry, etc.

Filter media

suspended solids, particles, water quality dirt, bacteria and algae, rust, etc

Name:  Wire wound filter element

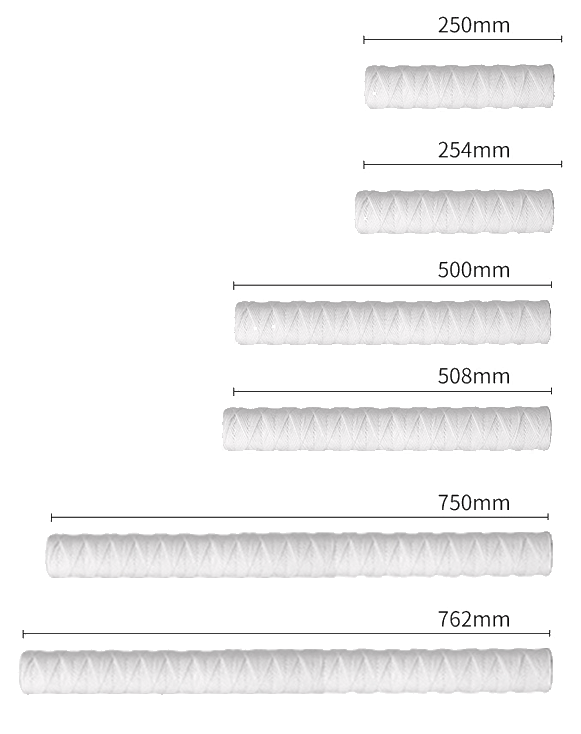

Filter Length: 10″，20″，30″，40″

Filter Outer Diameter: Φ60mm，Φ65mm；

Filter inner diameter: Φ28mm，Φ30mm；

Central frame:  polypropylene PP frame, stainless steel frame;

Maximum pressure:  ≤0.5MPa; maximum pressure drop: 0.2MPa.

Filtration accuracy: 1μm,5μm，10μm，20μm，30μm，50μm，75μm，100μm;

Filter material:  polypropylene PP thread, absorbent cotton thread, glass fiber thread

Maximum working temperature:  polypropylene thread: polypropylene frame≤60°C; stainless steel frame≤80°C. Absorbent cotton thread:  stainless steel frame≤120°C.

Can be customized according to different working conditions

Internal thread structure for enhanced compression resistance:

Wide chemical compatibility, large flux, low differential pressure, Can be washed and regenerated, economical, Sterilize by chemical method, in-line steam sterilization.

Food grade material

Filter media: polypropylene fiber membrane Upper and lower flow support material: polypropylene Support frame and structural elements:Polypropylene Sealing material: silicone rubber, nitrile rubber, EPDM rubber, fluorine rubber.

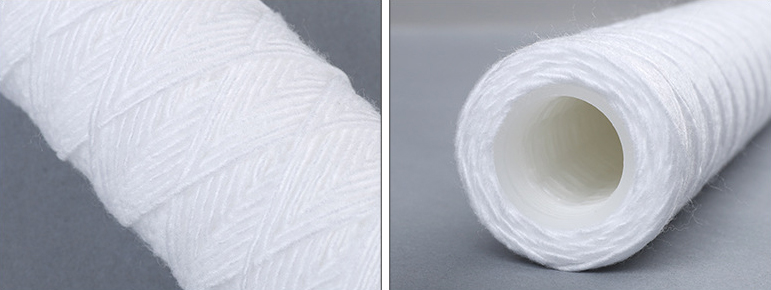

Structure:

Sparse outside and dense inside, honeycomb structure, Large amount of pollution.

Working principle

The wire wound filter element is formed by winding the textile fiber on the multi skeleton in a specific way. When winding, the filter elements with different filtering precision can be made by controlling the winding density of the filter elements. The filter element has a large outside diameter and a small inside diameter, which has an excellent deep filtering effect.

Different connecting frames of wire wound filter element
